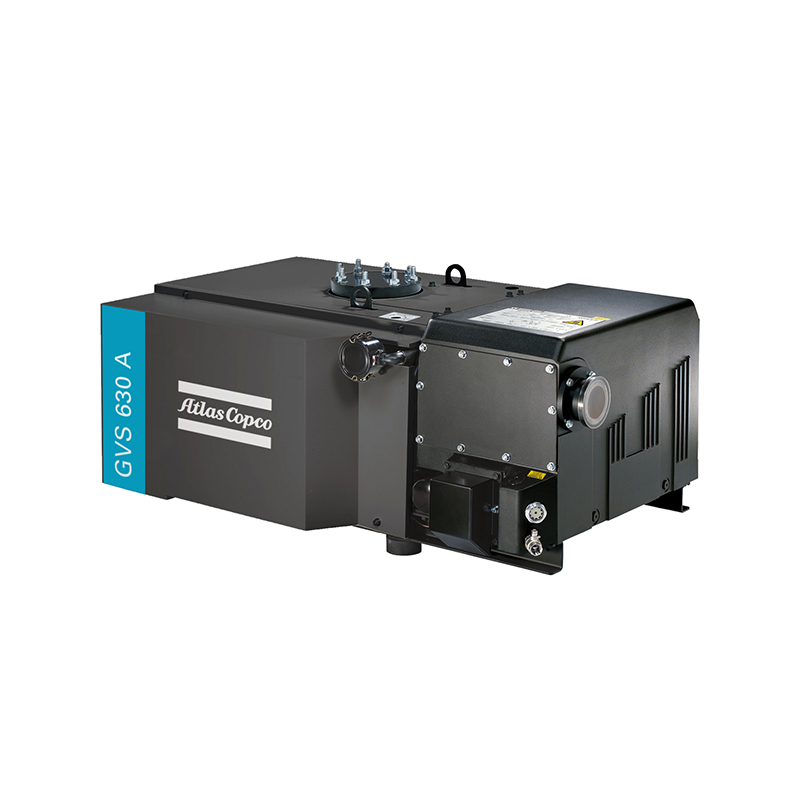

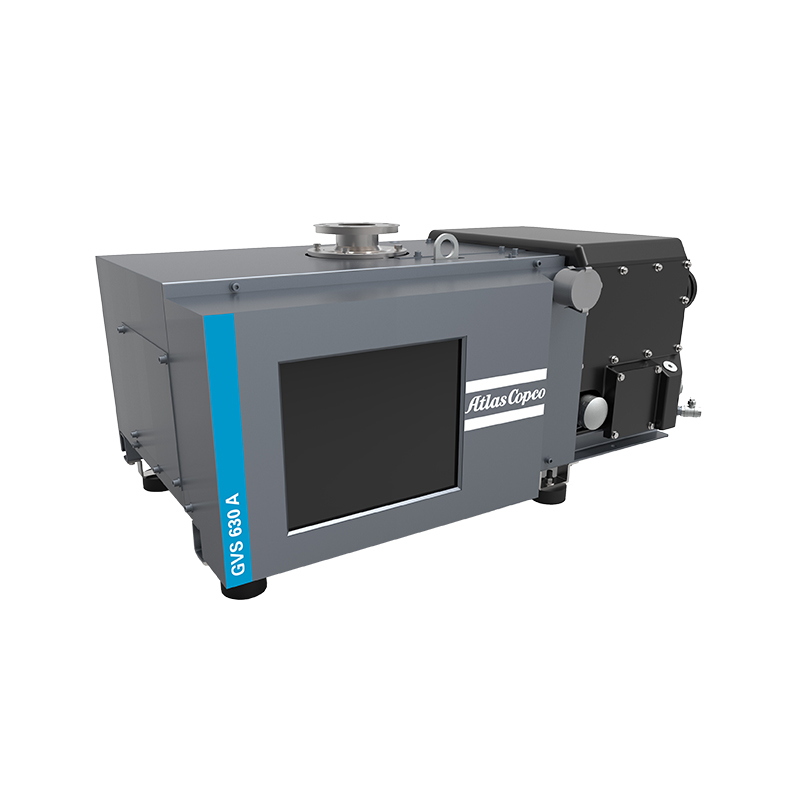

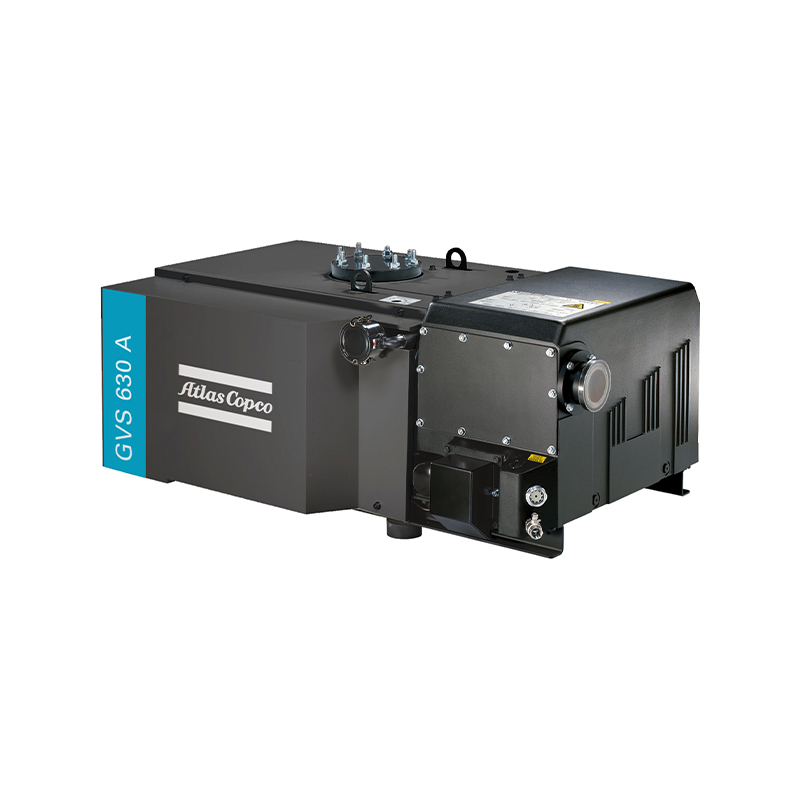

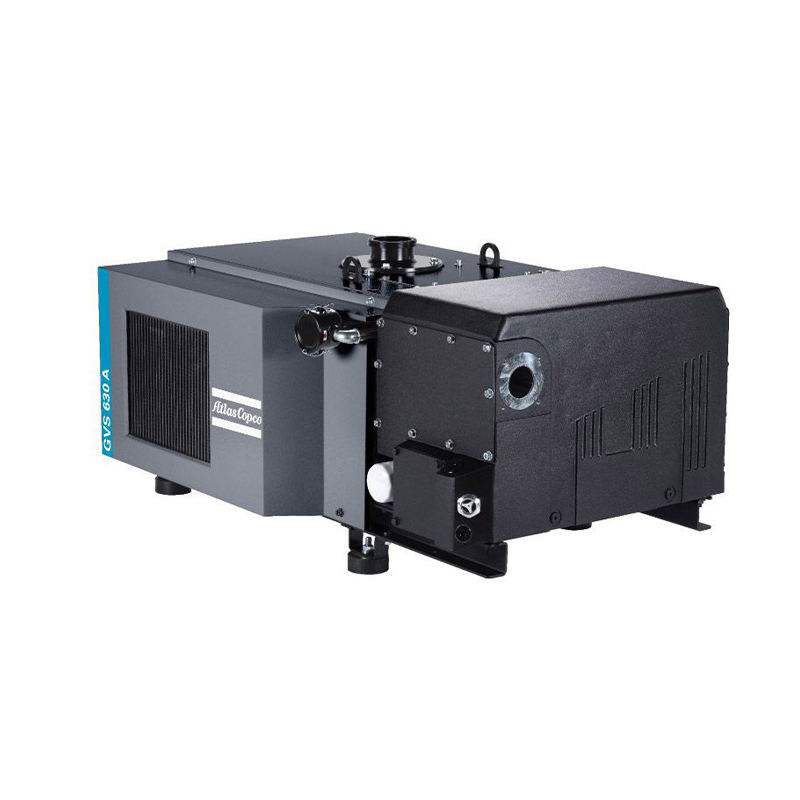

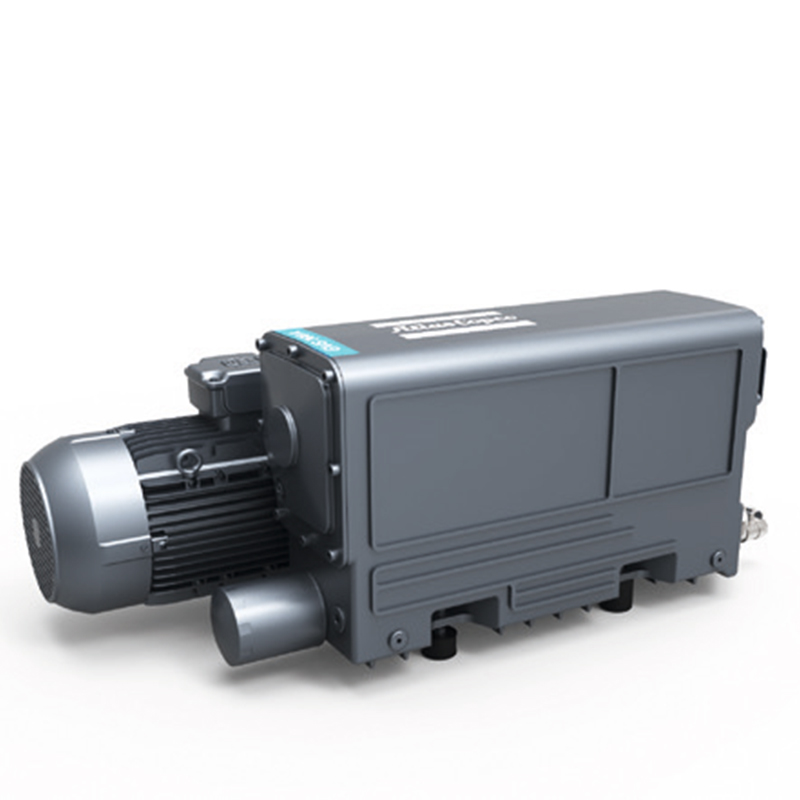

Atlas Copco oil lubricated rotary vane vacuum pump GVS60A GVS100A GVS150A GVS200A GVS300A GVS470A GVS630A
● Easy to install due to compact, space-saving design.
● High reliability through a rugged design and optimal oil retention at all operating pressures.
● Low maintenance and wear due to optimallyselected shaft speeds.
● Low noise and vibration levels throughout the pressure range.
● Our coolest pump temperatures on the market allow a longer oil lifetime.
Ideal for all your vacuum needs
Providing highly efficient vacuum pumping performance, the GVS 16-630 A series is ideal for critical applications in packaging, woodworking, rubber, plastics, electronics, paper & printing, material handling and other exacting industries. Moreover, with ten models offering pumping speeds of between 16 and 840 m3/h (at 60 Hz), you will definitely find the right model for your specific application.
Our Advantage
Detailed Image
Solicitud
GVS 16-630 A oil-sealed rotary vane vacuum pumps are perfect for a range of demanding applications:
- Meat packing: fresh and cooked meats, poultry, tumbling, filling and sealing.
The GVS A is also suitable for high water content duties, for applications such as plastics, clay molding, drying pipelines, salad cooling, freeze drying etc.
In case your application is not listed or you are considering whether your application will produce the benefits often associated with centralizing your vacuum supply, please contact your local. Atlas Copco representative to discuss the suitability of the GVS A range of vacuum pumps for your specific application.
Technical Specifications
| PUMP TYPE | Pumping speed | Ultimate pressure | Motor size | Watervapor handling capability | Motor supply specif cati on | |||||||||
| Oil sealed rotary vane | 1ph | 3ph | Vapor limit | |||||||||||
| m2/h | cfm | mbar(a) | Torr | kW | hp | kW | hp | mbar | Torr | kg/h | ||||
| GVS 16 A | 16 | 9 | 0.5 | 0.4 | 0.75 | 1 | 0.75 | 1 | 15 | 11 | 0.05 |
1-200-240V50Hz/3-200-240.
380-415V50Hz | ||
| 19 | 11 | 0.5 | 0.4 | 0.9 | 1.2 | 0.9 | 1.2 | 15 | 11 | 0.05 |
1-200-240V60Hz/3-200-240,
380-460V60Hz | |||
| GVS 25A | 25 | 15 | 0.5 | 0.4 | 0.75 | 1 | 0.75 | 1 | 15 | 11 | 0.08 |
1-220-230V50Hz/3-200-240,
380-415V50Hz | ||
| 29 | 17 | 0.5 | 0.4 | 0.9 | 1.2 | 0.9 | 1.2 | 15 | 11 | 0.08 |
1-220-230V60Hz/3-200-240,
380-460V60Hz | |||
| GVS40 A | 44 | 26 | 0.5 | 0.4 | 1.1 | 1.5 | 1.1 | 1.5 | 30 | 23 | 0.76 |
1-200-240V50Hz/3-230,400V50Hz/
3-220-230,380-400V50Hz | ||
| 53 | 31 | 0.5 | 0.4 | 1.5 | 2 | 1.5 | 2 | 30 | 23 | 0.76 |
1-200-240V60Hz/3-230,400V60Hz/
3-190-240,380-460V60Hz | |||
| Oxygen variant available (3) | ||||||||||||||
| GVS 60A | 59 | 35 | 0.5 | 0.4 | - | - | 1.5 | 2.2 | 30 | 23 | 1 |
3-230,400V50Hz/3-220-230,380-400V
Hz50 | ||
| 71 | 42 | 0.5 | 0.4 | 1.8 | 3 | 30 | 23 | 1 |
3-230,460V60Hz/3-220-230,380-460V
Hz60 | |||||
| GVS 100A(1) | 98 | 57 | 0.5 | 0.4 | 2.2 | 3 | 30 | 23 | 1.6 |
3-230,400V50Hz/3-220-240,380-415V
Hz50 | ||||
| 117 | 69 | 0.5 | 0.4 | 3.5 | 5 | 30 | 23 | 1.6 |
3-230.460V60Hz/3-220-230.380-460V
Hz60 | |||||
| GVS 150 (1)(2) | 151 | 89 | 0.1 | 0.08 | - | - | 3.3 | 4.4 | 11 | 8 | 1.4 | 3-230,400V50Hz | ||
| 181 | 107 | 0.1 | 0.08 | - | - | 3.7 | 5 | 11 | 8 | 1.4 | 3-208-230V60Hz/3-265,460V60Hz | |||
| GVS 200A(1) | 180 | 106 | 0.1 | 0.08 | - | - | 4 | 6 | 30 | 23 | 3.4 |
3-200-240V50Hz/3-220-240.380-415V
50Hz/3-400V 50Hz | ||
| 220 | 130 | 0.1 | 0.08 | 5.5 | 7.5 | 30 | 23 | 3.4 |
3-440-460V60Hz/3-208-230,460V60Hz
/3-200-230,380-460V60Hz | |||||
| GVS300 A (1) | 280 | 165 | 0.1 | 0.08 | - | - | 5.5 | 7.5 | 10 | 8 | 1.3 |
3-200-240V50Hz/3-220-240,380-415V
50Hz/3-400V 50Hz | ||
| 340 | 200 | 0.1 | 0.08 | - | - | 6.3 | 8.6 | 10 | 8 | 1.3 |
3-440-460V60Hz/3-208-230.460V60Hz
/3-200-230,380-460V60Hz | |||
| GVS470 A | 470 | 277 | 0.1 | 0.08 | - | - | 9.2 | 12 | 15 | 11 | 5 | 3-400V50Hz/3-200-240,380-41550Hz | ||
| 570 | 366 | 0.1 | 0.08 | - | - | 11 | 15 | 15 | 11 | 5 |
3-230,440-480V60Hz/3-200-230,380-
460V60Hz | |||
| GVS 630A | 700 | 412 | 0.1 | 0.08 | - | - | 15 | 20 | 40 | 30 | 17 | 3-400V50Hz/3-200-240,380-41550Hz | ||
| 840 | 494 | 0.1 | 0.08 | - | - | 18.5 | 25 | 40 | 30 | 17 |
3-230,440-480V60Hz/3-200-230,
380-460V60Hz | |||
