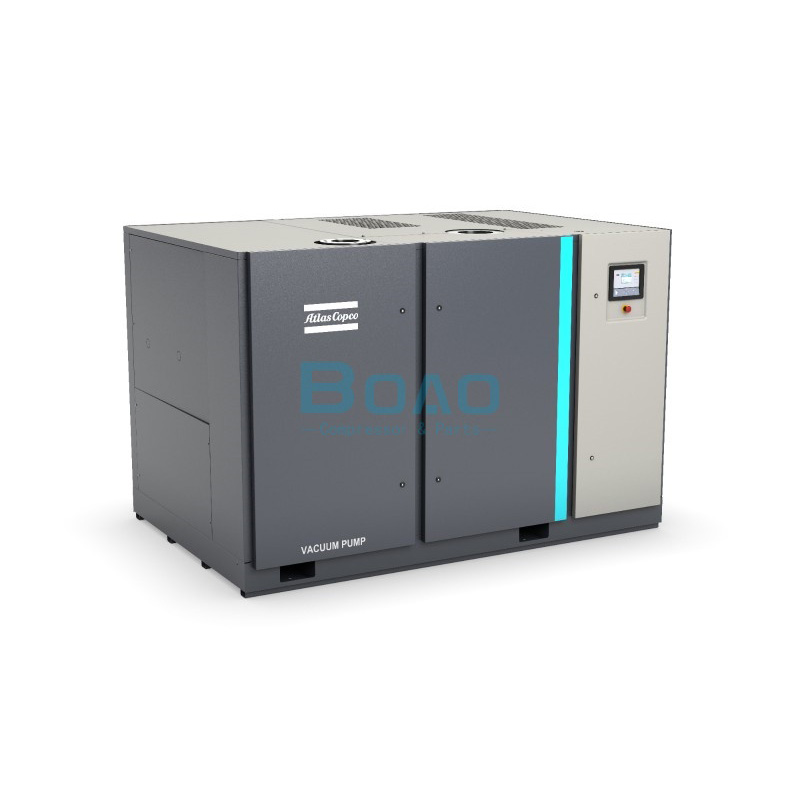

Atlas Copco Oil Sealed Rotary Screw Vacuum Pump Ghs 3800 4500 5400 Vsd+
Atlas copco oil sealed rotary screw vacuum pump GHS 3800 GHS4500 GHS5400 VSD+
Depth:
مم1939
Width: مم2850
ارتفاع: 1893 mm.
Width: مم2850
ارتفاع: 1893 mm.
ES4i, ES6i, ES6v, ES16v, various inlet & outlet connections and other essential vacuum accessories are available as options or accessories.
Electrical specification: 380/460V 50/60Hz IP54 cubicle CSA/UL.
220 V/575 V: available upon request.
Available oils include mineral, synthetic and food grade.
All the machines are available as air-cooled and water-cooled version.
Electrical specification: 380/460V 50/60Hz IP54 cubicle CSA/UL.
220 V/575 V: available upon request.
Available oils include mineral, synthetic and food grade.
All the machines are available as air-cooled and water-cooled version.
Why atlas copco variable speed drive technology?
These vacuum pumps consume approximately 50% less energy than alternative technologies.
These vacuum pumps consume approximately 50% less energy than alternative technologies.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
يرجى ملء النموذج أدناه لطلب عرض أسعار أو طلب المزيد من المعلومات عنا. يرجى أن تكون مفصلة في رسالتك، وسوف نعود إليك في أقرب وقت ممكن مع استجابة. نحن على استعداد لبدء العمل على مشروعك الجديد، اتصل بنا الآن للبدء.
Our Advantage
Easy, fast installation saves time
● Space-saving –The GHS VSD+ Series has one of the smallest footprints on the market: ideal for compressor house installations.
● Everything you need is delivered in a single, neat enclosure.
● Plug-and-play installation.
● Multiple pumps can be controlled by the Elektronikon ® (via ES6i).
● Everything you need is delivered in a single, neat enclosure.
● Plug-and-play installation.
● Multiple pumps can be controlled by the Elektronikon ® (via ES6i).
Optimized working surroundings
In addition, the GHS VSD+ Series offers a very low noise level when compared to other vacuum pumps on the market today. Its market-leading oil retention also means that the quality of the exhausted air is optimal and oil spills on the factory floor are avoided. The end result is a significantly cleaner working environment.
Guaranteed uptime and low costs
The GHS VSD+ Series is designed for easy and infrequent maintenance: no vanes, no vane chatter, and no vane wear. MeanTime Between Maintenance (MTBM) rates are extremely long. SMARTLINK is available to keep you effortlessly informed of pump performance and maintenance requirements.
Energy recovery
As much as 90% of the electrical energy used by a vacuum solution is converted into heat. With Atlas Copco's integrated energy recovery system, it is feasible to recover up to 75% of that power input as hot water without any influence on the machine's performance.Through efficient usage of the recovered energy, you obtain important energy cost savings and a high return on investment.
Innovative Technology
1 (16)
2 (43)
3 (7)
4 (5)
Element
● Highly efficient oil-sealed rotary screw.
● Outstanding performance in a robust design.
● Element life is significantly longer than screw compressors and vane pumps.
● Outstanding performance in a robust design.
● Element life is significantly longer than screw compressors and vane pumps.
Elektronikon® monitoring system and SMARTLINK (optional)
● State-of-the-art monitoring system for your vacuum pumps.
● Full integration with your plant management system thanks to a remote monitoring option.
● Full integration with your plant management system thanks to a remote monitoring option.

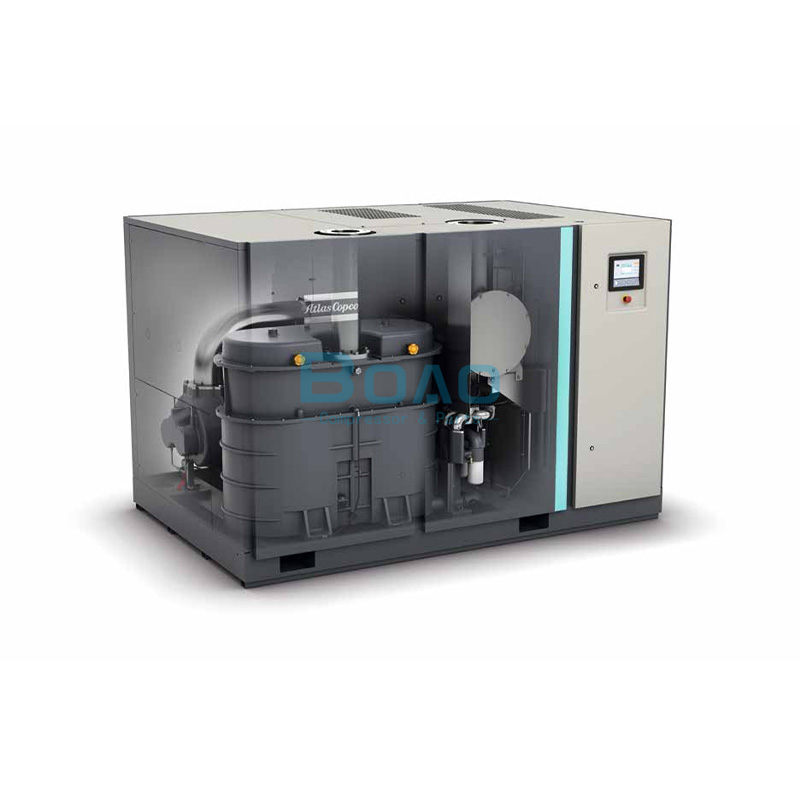

Oil separator vessel
● The use of cyclone separation increases the total oil retention capacity of the machine without introducing excessive pressure drop resulting in a clean energy efficient vacuum pump.
● The design of the vessel also keeps focus on the serviceability of the separator elements, allowing filter change without disassembly of piping.
● The design of the vessel also keeps focus on the serviceability of the separator elements, allowing filter change without disassembly of piping.
State-of-the-art oil cooling system
● An electronic thermostatic valve (QMV) accurately controls the element temperature.
● Accurate temperature control keeps the oil quality in optimal condition by reducing or eliminating water condensation in the oil.
● The cooling system is completed with a variable speed fan to optimize the energy efficiency.
● Accurate temperature control keeps the oil quality in optimal condition by reducing or eliminating water condensation in the oil.
● The cooling system is completed with a variable speed fan to optimize the energy efficiency.
Optimal flexibility
A unique water handling capability provides you with the versatility and flexibility you need. All the machines are available as air-cooled and water-cooled version.
المواصفات الفنية
| Type | Nominal النزوح | Ultimate pressure | Oil quantity | Permissable ambient temperature range | Inlet connection size | Outlet connection size | Shaft power | |||||
| m:/hr | cfm | mbar(a) | Torm | litres | gallons | ℃ | °F | kW | hp | |||
| GHS 3800 VSD | 3828 | 2253 | 1 | 0.75 | 85 | 21 | O to 46 | 32 to 115 |
DN200
(PN10) |
DN150
(PN10) | 55 | 75 |
| GHS 4600 VSD | 4478 | 2636 | 1 | 0.75 | 85 | 21 | 0 to 46 | 32 to 115 |
DN200
(PN10) |
DN150
(PN10) | 75 | 100 |
| GHS 5400 VSD | 5004 | 2945 | 1 | 0.75 | 85 | 21 | O to 46 | 32 to 115 |
DN200
(PN10) |
DN150
(PN10) | 90 | 120 |
