Atlas Copco variable speed integrated air dryer screw air compressor GA90 GA110 GA132 GA160 VSD FF 1

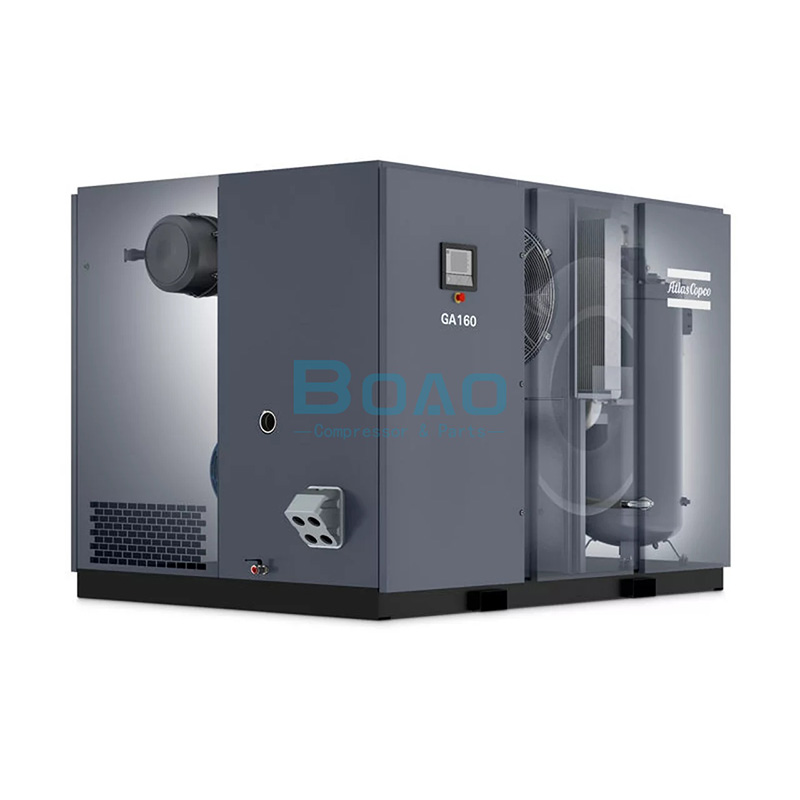

Atlas Copco variable speed integrated air dryer screw air compressor GA90 GA110 GA132 GA160 VSD FF 2

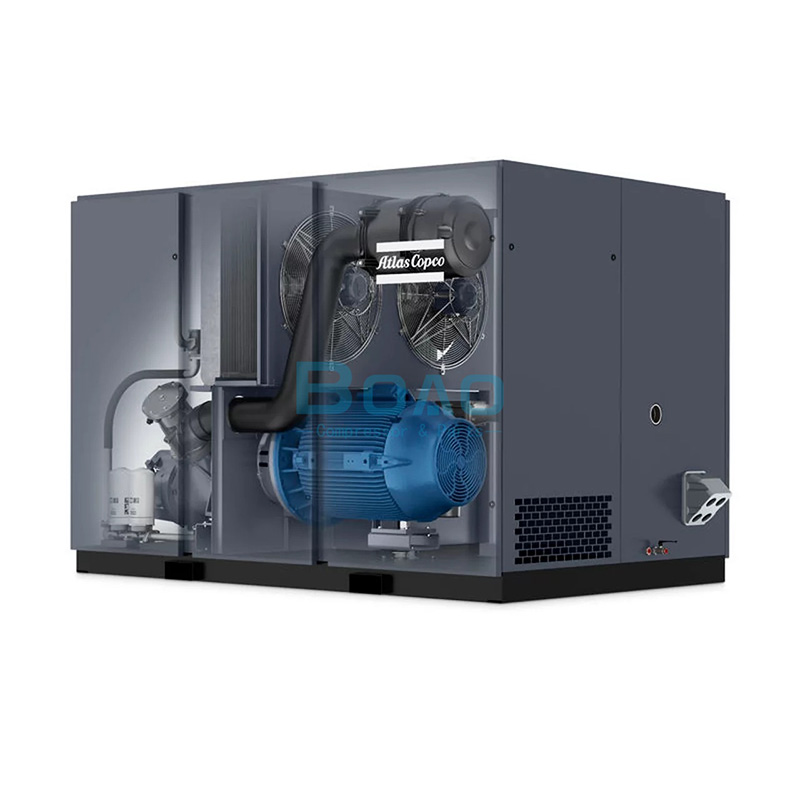

Atlas Copco variable speed integrated air dryer screw air compressor GA90 GA110 GA132 GA160 VSD FF 3

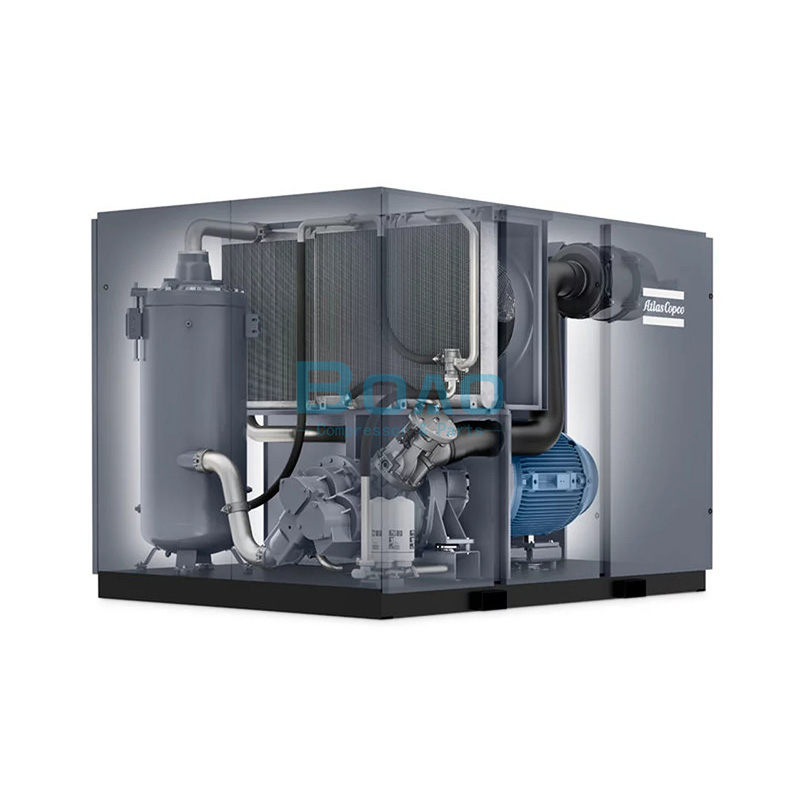

Atlas Copco variable speed integrated air dryer screw air compressor GA90 GA110 GA132 GA160 VSD FF 4

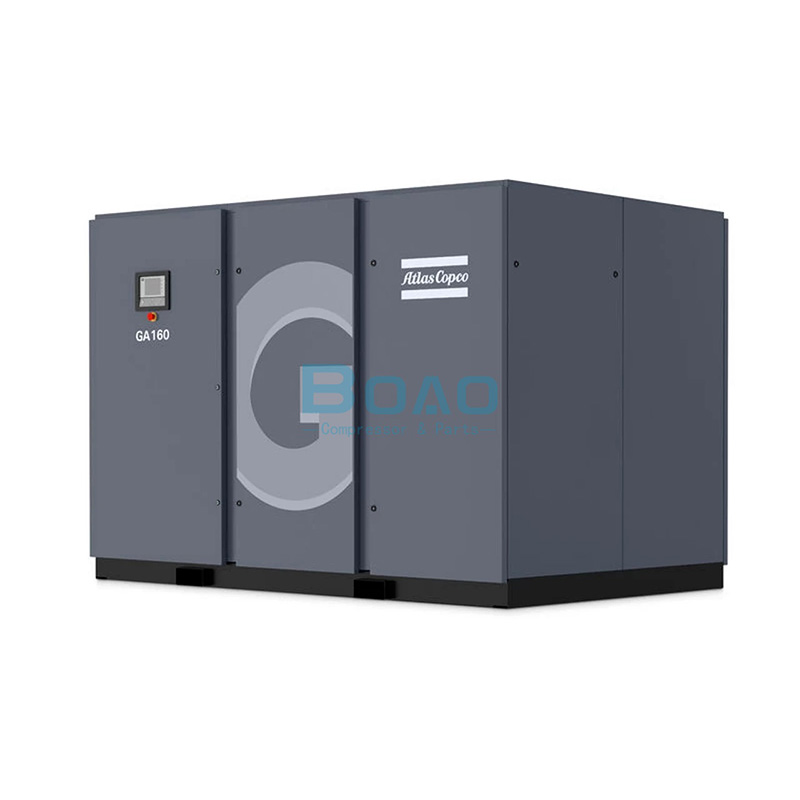

Atlas Copco variable speed integrated air dryer screw air compressor GA90 GA110 GA132 GA160 VSD FF 5

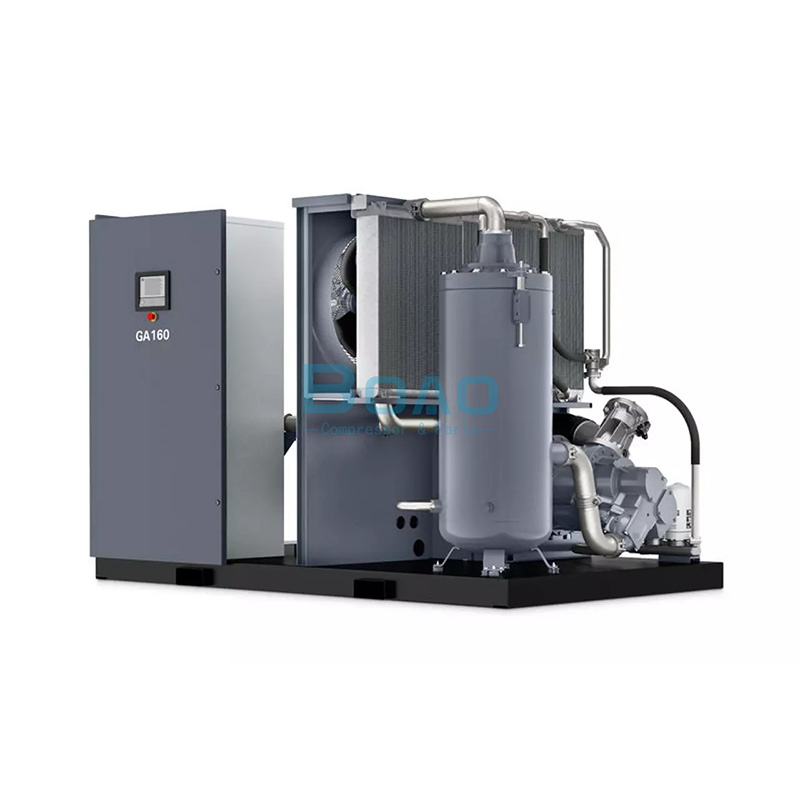

Atlas Copco variable speed integrated air dryer screw air compressor GA90 GA110 GA132 GA160 VSD FF 6

Atlas Copco variable speed integrated air dryer screw air compressor GA90 GA110 GA132 GA160 VSD FF

Atlas Copco air compressor GA 90+ GA110 GA132 GA160 adopts a 45 degree inclined C190 air end. The redesigned pipeline structure reduces the pipeline length and pressure loss. Thanks to the enhanced design of heat exchanger, the operating temperature can be reduced by 5-8 ℃. The above improvements are expected to bring 3-5% flow increase to the screw air compressor.

SETTING A NEW STANDARD IN THE INDUSTRY

Atlas Copco air compressor GA90+-160 KW bring you outstanding sustainability, reliability and performance, while minimizing the total cost of ownership. Built to perform even in the harshest environments, these compressors keep your production running efficiently.

investigação

download

2935067803 GA90_GA110-160_GA110-160 VSD_EN_LR

Escreva uma crítica

ميزة

Superior air quality

● Standard integrated water separator to remove 100% of the condensate with electronic drain.
● 3-step efficient oil separation process for low residual oil

State-of-the-art screw element

● Asymmetric rotor profile for maximum efficiency.
● Bearing selection leads to low wear.

Service friendly

● Selection of long lifetime consumables.
● Easy and safe access to all service parts.

Triple benefits with the gear driven transmission

● Built to last, totally enclosed and protected against dirt and dust.
● High-efficiency drive arrangement; no coupling or slippage losses.
● Coupling to absorb the thrust load and increase the reliability.

High efficient motor

● TEFC IP55 motor (Class F insulation B rise) protects against dust and chemicals.
● Continuous operation under severe ambient temperature conditions.

Easy to install

● All inclusive package with flexible ducting possibilities.
● All user connections located on the same side of the compressor.
● Phase sequence relay as standard to protect the compressor against reverse rotation.

Integrated refrigerant dryer

● Highly efficient dryer to increase the savings.
● Reduced floor space requirements.
● Optimized operation with the Elektronikon® unit controller.

Atlas Copco GA7-GA110VSD+ variable speed screw air (7)

Heavy duty air intake filter

● Protects the compressor components by removing 99.9% of dirt particles down to 3 microns.
● Reduces the dust load in the fine filter, doubling the filter element lifetime without reducing filter efficiency.

Cooling module

● Separated oil and after coolers for highest efficiency.
● Standard design up to 46°C/115°F and HAT (55°C/131°F) variant available.
● Cooling fans located in the middle for fresh air in the system to prevent build-up of heat.
● Fans with low noise level.

Durable design

● Solid metal pipe for durable operation and reduced service costs.
● Rigid straight connections eliminate risk of leaks and improve package efficiency.

Optimized loading/ unloading valve

● Assures constant optimized pressure in the system resulting in high energy savings.
● Smart design with few moving parts for highest reliability.
● Accurate control through solenoid valve.

أبعاد

يكتب	معيار						Full ميزة
	L	W	H	L	W	H	L	W	H	L	W	H
	مم			بوصة			مم			بوصة
GA 90+/GA 110-160 air-cooled & water-cooled	2800	2000	2000	111	79	79	3700	2000	2000	146	79	79
GA 110-160 VSD air-cooled	3200	2000	2347	126	79	92	3800	2002	2347	150	79	92
GA 110-160 VSD water-cooled	3200	1630	2347	126	64	92	3200	1630	2347	126	64	92

المواصفات الفنية

Working pressure				Capacity FAD1						وزن
معيار		Full Feature3		Capacity FAD1			قوة المحرك المثبتة		Noise level2	معيار		Full Feature
بار(هـ)	ppsigsig	بار(هـ)	psigpsig	ل/ثانية	m3/min	قدم مكعب في الدقيقة	كيلوواط	حصان	ديسيبل (أ)	كجم	lbs	kg lbs
5.5	80	5.3	77	336	20.2	712	90	125	74	3000	6614	3393	7480
7.5	109	7.3	106	293	17.6	621	90	125	74	3000	6614	3393	7480
8.5	123	8.3	120	280	16,8	593	90	125	74	3000	6614	3393	7480
10	145	9.8	142	253	15.2	536	90	125	74	3000	6614	3393	7480
5.5	80	5.3	77	402	24.1	852	110	150	74	3100	6834	3493	7701
7.5	109	7.3	106	364	21.8	771	110	150	74	3100	6834	3493	7701
8.5	123	8.3	120	340	20.4	720	110	150	74	3100	6834	3493	7701
10	145	9.8	142	312	18.7	661	110	150	74	3100	6834	3493	7701
14	203	13.8	200	239	14.3	506	110	150	74	3100	6834	3493	7701
5.5	80	5.3	77	474	28.4	1004	132	175	74	3375	7441	3768	8307
7.5	109	7.3	106	430	25.8	911	132	175	74	3375	7441	3768	8307
8.5	123	8.3	120	401	24.1	850	132	175	74	3375	7441	3768	8307
10	145	9.8	142	373	22.4	790	132	175	74	3375	7441	3768	8307
14	203	13.8	200	300	18	636	132	175	74	3375	7441	3768	8307
7.5	109	7.3	106	508	30.5	1076	160	215	74	3440	7584	3833	8451
8.5	123	8.3	120	485	29.1	1028	160	215	74	3440	7584	3833	8451
10	145	9.8	142	452	27.1	958	160	215	74	3440	7584	3833	8451
14	203	13.8	200	361	21.7	765	160	215	74	3440	7584	3833	8451

يكتب 50 Hz		Working pressure				Capacity FAD 1			Installed motor power	Noise level 2	وزن
		معيار		Full ميزة 3		معيار / Full ميزة			Installed motor power	Noise level 2	معيار		Full ميزة
		بار(هـ)	رطل لكل بوصة مربعة	بار(هـ)	رطل لكل بوصة مربعة	ل/ثانية	m 3 /min	قدم مكعب في الدقيقة	كيلوواط	ديسيبل (أ)	كجم	lbs	كجم	lbs
GA 110 VSD -8.5 bar	Minimum	5	72	5	72	128 - 437	7.7 - 26.2	271 - 926	110	78	3375	7441	4015	8851
	Nominal	7	101	7	101	128 - 392	7.7 - 23.5	271 - 831
	Maximum	8.5	123	8.3	120	154 - 359	9.2 - 21.5	326 - 761
GA 110 VSD - 10 حاجِز	Minimum	6	87	6	87	182 - 411	10.9 - 24.7	386 - 871	110	78	3375	7441	3975	8763
	Nominal	9.5	138	9.5	138	177 - 334	10.6 - 20.0	375 708
	Maximum	10	145	9.8	142	176 - 325	10.6 - 19.5	373 - 689
GA 110 VSD - 14 حاجِز	Minimum	9	131	9	131	178 - 344	10.7 - 20.6	377 - 729	110	78	3375	7441	3950	8708
	Nominal	13.5	196	12.5	181	166 - 266	10.0 - 16.0	352 - 564
	Maximum	14	203	12.8	185	165 - 258	9.9 - 15.5	350 - 547
GA 132 VSD - 8.5 حاجِز	Minimum	5	72	5	72	128 - 513	7.7 - 30.8	271 - 1087	132	78	3415	7529	4050	8929
	Nominal	7	101	7	101	128 - 463	7.7 - 27.8	271 - 981
	Maximum	8.5	123	8.3	120	154 - 426	9.2 - 25.6	326 - 903
GA 132 VSD - 10 حاجِز	Minimum	6	87	6	87	182 - 484	10.9 - 29.0	386 - 1026	132	78	3415	7529	4050	8929
	Nominal	9.5	138	9.5	138	177 - 399	10.6 - 23.9	375 - 845
	Maximum	10	145	9.8	142	176 - 389	10.6 - 23.3	373 - 824
GA 132 VSD - 14 حاجِز	Minimum	9	131	9	131	178 - 409	10.7 - 24.5	377 - 867	132	78	3415	7529	4050	8929
	Nominal	13.5	196	12.5	181	166 - 324	10.0 - 19.4	352 - 687
	Maximum	14	203	12.8	185	165 - 316	9.9 - 19.0	350 - 670
GA 160 VSD - 8.5 حاجِز	Minimum	5	72	5	72	128 - 569	7.7 - 34.1	271 - 1206	160	78	3515	7749	4155	9160
	Nominal	7	101	7	101	128 - 548	7.7 - 32.9	271 - 1161
	Maximum	8.5	123	8.3	120	154 - 507	9.2 - 30.4	326 - 1074
GA 160 VSD - 10 حاجِز	Minimum	6	87	6	87	182 - 565	10.9 - 33.9	385 - 1197	160	78	3515	7749	4155	9160
	Nominal	9.5	138	9.5	138	177 - 477	10.6 - 28.6	375 - 1011
	Maximum	10	145	9.8	142	176 - 466	10.6 - 28.0	373 - 987
GA 160 VSD - 14 حاجِز	Minimum	9	131	9	131	178 - 489	10.7 - 29.3	377 - 1036	160	78	3515	7749	4155	9160
	Nominal	13.5	196	12.5	181	166 - 395	10.0 - 23.7	352 - 837
	Maximum	14	203	12.8	185	165 - 385	9.9 - 23.1	350 - 816

(1) Unit performance measured according to ISO 1217, Annex CandE, Edition 4 (2009) Reference conditions:

● Absolute inlet pressure 1 bar (14.5 psi).

● Intake air temperature 20°C (68°F).

(2) A-weighted emission sound pressure level at the workstation, Lp WSA (re 20 μPa) dB (with uncertainty 3 dB). Values determined according to noise level test code ISO 2151 and noise

measurement standard ISO 9614.

Pressure dew point of integrated refrigerant dryer at reference conditions: 2°C to 3°C (36°F to 37°F).

(3) Integrated dryer: compressed air pressure dewpoint at dryer reference conditions 3°C (37°F).

يتم قياس FAD(1) عند ضغوط العمل التالية:

8.5 bar version at 7 bar (Standard & FF)

10 bar version at 9.5 bar (Standard & FF)

14 bar version at 13.5 bar (Standard) / 12.5 bar (FF)
