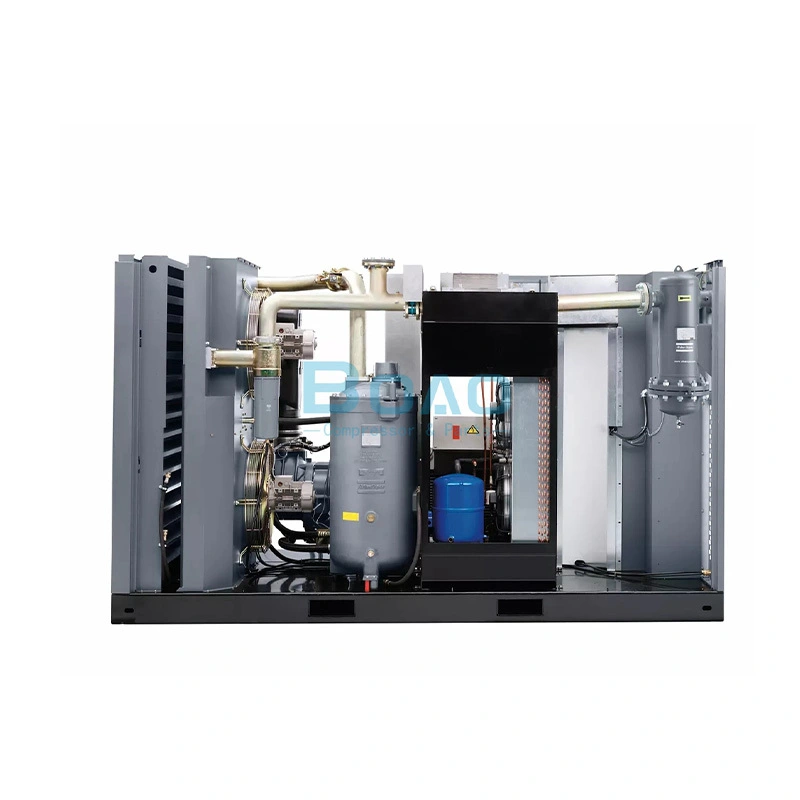

Atlas Copco oil lubricated screw air compressor GA160+ GA200 GA250 GA315 VSD FF 1

Atlas Copco oil lubricated screw air compressor GA160+ GA200 GA250 GA315 VSD FF 2

Atlas Copco oil lubricated screw air compressor GA160+ GA200 GA250 GA315 VSD FF 3

Atlas Copco oil lubricated screw air compressor GA160+ GA200 GA250 GA315 VSD FF 4

Atlas Copco oil lubricated screw air compressor GA160+ GA200 GA250 GA315 VSD FF 5

Atlas Copco oil lubricated screw air compressor GA160+ GA200 GA250 GA315 VSD FF

GA 160+-315 (VSD) (160-315 kW/200-350 hp)

Atlas Copco oil injection screw air compressor GA 160+-315 (VSD) Series has the characteristics of reliability, efficiency and simplicity. Compared with the previous generation of products, it has realized a touch screen controller with smaller footprint, lower energy consumption and more simple and intuitive.

investigação

download

2935062612 GA160+ -315 (VSD) EN_LR

Escreva uma crítica

Característica

第4页-9

第5页-12

第5页-14 (2)

第5页-13

High-efficiency motor

● TEFC IP55 motor (Class F insulation B rise) protects against dust and chemicals.
● Continuous operation in ambient temperatures up to 55°C/131°F (standard up to 46°C/115°F).

State-of-the-art screw element

● Asymmetric rotor profile and meticulous selection of bearings.
● Low wear and tear leads to increased reliability.
● Proven reliability with thousands of installations throughout the world.

Air Compressor Cooling module

● Separated oil and aftercoolers for highest efficiency.
● Axial cooling fans driven by separateTEFC electric motors (IP55 protection).
● Low noise level.

Gear-driven transmission

● Maintenance-free; totally enclosed and protected against dirt and dust.
● Optimal working range of the screw element.
● Bowex coupling to absorb the trust load and increase the reliability.

Superior air quality

● Integrated water separator with electronic drain removes 100% of condensate.
● Full Feature with integrated dryer (up to 315 kW).

Service-friendly

● Selection of long lifetime consumables.
● Easy and safe access to all service parts.
● Unique sliding system to access the oil coolers.

Optimized loading/unloading valve

● Ensures constant optimized pressure in the system, resulting insignificant energy savings.
● Simple, maintenance-free set-up with few moving parts for highest reliability.
● Accurate control through solenoid valve.

Atlas Copco GA7-GA110VSD+ variable speed screw air (7)

Easy to install

● Oil-containing frame as standard.
● All-in-one package, no hidden costs.
● Flexible ducting possibilities.

Superior air intake filter

● Protects the compressor components by removing 99.9% of dirt particles > 3 μm.
● Reduces the dust load in the fine filter, doubling the filter element lifetime without reducing filter efficiency.

Elektronikon for advanced monitoring

● Integrated smart algorithms reduce system pressure and energy consumption.
● Monitoring features include warning indications, maintenance scheduling and online visualization of machine’s condition.

Dimensiones

	mm
GA 160+-315 A/W	3400	2000	2300
GA 160+-315 A - FF	4300	2000	2300
GA 160+-315 W - FF	3400	2000	2300
GA 160+-315 A/W (MV)	3700	2000	2300
GA 160+-315 A - FF (MV)	4600	2000	2300
GA 160+-315 W - FF (MV)	3700	2000	2300
GA 200-315 VSDA	3700	2000	2300
GA 200-315 VSDA - FF	4600	2000	2300
GA 200-315 VSDW	3700	2000	2300
GA 200-315 VSDW - FF	3700	2000	2300

A = air-cooled. W = water-cooled. FF = Full Feature.

FAD (1) is measured at the following working pressures:

Standard
5.5 bar version at	5 bar	5 bar
7.5 bar version at	7 bar	7 bar
8.5 bar version at	8 bar	8 bar
10 bar version at	9.5 bar	9.5 bar
14 bar version at	13.5 bar	12.5 bar

Technical Specifications

TYPE	Working pressure				Capacidad FAD (1)			Installed motor power	Noise level (2)	Peso
	Standard		Full Feature (3)		Standard / Full Característica			Installed motor power	Noise level (2)	Standard		Full Característica
	bar(e)	psig	bar(e)	psig	l/s	m³/min	cfm	kW	dB(A)	kilogramo	lb	kilogramo	lb
GA 160+ - 5.5 bar	5.5	80	5.3	77	621	37.2	1316	160	77	3624	7990	4081	8997
GA 160+ - 7.5 bar	7.5	109	7.3	106	538	32.2	1140			3624	7990	4081	8997
GA 160+ - 8.5 bar	8.5	123	8.3	120	498	29.8	1055			3197	7049	3654	8057
GA 160+ - 10 bar	10	145	9.8	142	448	26.9	949			3197	7049	3654	8057
GA 200 - 5.5 bar	5.5	80	5.3	77	748	44.8	1585	200	78	3624	7990	4217	9297
GA 200 - 7.5 bar	7.5	109	7.3	106	674	40.4	1428			4927	10862	5384	11870
GA 200 - 8.5 bar	8.5	123	8.3	120	632	37.9	1339			4927	10862	5384	11870
GA 200 - 10 bar	10	145	9.8	142	572	34.3	1212			4500	9922	4957	10929
GA 200 - 14 bar	14	203	13.8	200	440	26.4	932			4500	9922	4957	10929
GA 250 - 7.5 bar	7.5	109	7.3	106	833	49.9	1765	250	78	5144	11341	5737	12648
GA 250 - 8.5 bar	8.5	123	8.3	120	773	46.3	1638			5144	11341	5601	12348
GA 250 - 10 bar	10	145	9.8	142	709	42.5	1503			4717	10400	5174	11408
GA 250 - 14 bar	14	203	13.8	200	575	34.5	1219			4717	10400	5174	11408
GA 315 - 7.5 bar	7.5	109	7.3	106	1000	59.9	2119	315	78	5559	12256	6152	13563
GA 315 - 8.5 bar	8.5	123	8.3	120	955	57.2	2024			5559	12256	6152	13563
GA 315 - 10 bar	10	145	9.8	142	891	53.4	1888			5132	11315	5725	12622
GA 315 - 14 bar	14	203	13.8	200	745	44.7	1579			5132	11315	5589	12323

TYPE		Working pressure				Capacidad FAD (1)			Installed motor power	Noise level (2)	Peso
		Standard		Full Feature (3)		Standard / Full Característica			Installed motor power	Noise level (2)	Standard		Full Característica
		bar(e)	psig	bar(e)	psig	l/s	m³/min	cfm	kW	dB(A)	kilogramo	lb	kilogramo	lb
GA 200 VSD - 8.5 bar	Minimum	5	72	5	72	211 - 806	12.7 - 48.4	447 - 1708	200	77	5682	12527	6221	13715
	Nominal	7	101	7	101	206 - 716	12.4 - 43.0	436 - 1517
	Maximum	8.5	123	8.3	120	202 - 656	12.1 - 39.4	428 - 1390
GA 200 VSD - 10 bar	Minimum	6	87	6	87	100 - 611	6.0 - 36.7	212 - 1295	200	80	4352	9594	4891	10783
	Nominal	9.5	138	9.5	138	97 - 600	5.8 - 36.0	206 - 1271
	Maximum	10	145	9.8	142	96 - 584	5.8 - 35.0	203 - 1237
GA 200 VSD - 14 bar	Minimum	9	131	9	131	98 - 608	5.9 - 36.5	208 - 1288	200	80	4352	9594	4891	10783
	Nominal	13.5	196	12.5	181	86 - 504	5.2 - 30.2	182 - 1068
	Maximum	14	203	12.8	185	84 - 495	5.0 - 29.7	178 - 1049
GA 250 VSD - 8.5 bar	Minimum	5	72	5	72	211 - 900	12.7 - 54.0	447 - 1907	250	80	5682	12527	6301	13891
	Nominal	7	101	7	101	206 - 876	12.4 - 52.6	436 - 1856
	Maximum	8.5	123	8.3	120	202 - 808	12.1 - 48.5	428 - 1712
GA 250 VSD - 10 bar	Minimum	6	87	6	87	208 - 899	12.5 - 53.9	441 - 1905	250	77	5255	11585	5874	12950
	Nominal	9.5	138	9.5	138	200 - 767	12.0 - 46.0	424 - 1625
	Maximum	10	145	9.8	142	198 - 748	11.9 - 44.9	420 - 1585
GA 315 VSD - 8.5 bar	Minimum	5	72	5	72	211 - 1051	12.7 - 63.1	447 - 2237	315	79	5792	12769	6411	14134
	Nominal	7	101	7	101	206 - 1049	12.4 - 62.9	436 - 2223
	Maximum	8.5	123	8,3	120	202 - 992	12.1 - 59.5	428 - 2102
GA 315 VSD - 10 bar	Minimum	6	87	6	87	208 - 1050	12.5 - 63.0	441 - 2225	315	80	5365	11828	5984	13192
	Nominal	9.5	138	9.5	138	200 - 947	12.0 - 56.8	424 - 2007
	Maximum	10	145	9.8	142	198 - 925	11.9 - 55.5	420 - 1960

1. Unit performance measured according to ISO 1217, Annex C and E, Edition 4 (2009). Reference conditions:

Absolute inlet pressure 1 bar (14.5 psi).
Intake air temperature 20°C (68°F).

2. A-weighted emission sound pressure level at the work station, Lp WSA (re 20 μPa) dB (with uncertainty 3 dB). Values determined according to noise level test code ISO 2151 and noise measurement standard ISO 9614. Pressure dew point of integrated refrigerant dryer at reference conditions: 2°C to 3°C (36°F to 37°F).

3. Integrated dryer: compressed air pressure dewpoint at dryer reference conditions 3°C (37°F).
