Atlas Copco Oil Injection Twin Screw Air Compressor G110 G132 G160 G200 G250 G315 VSD 1

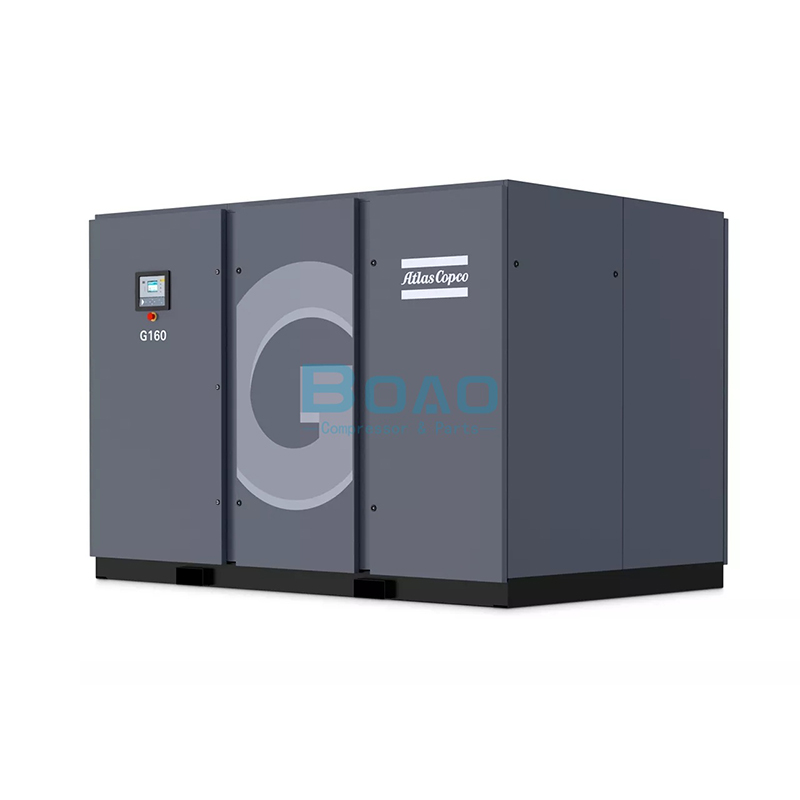

Atlas Copco Oil Injection Twin Screw Air Compressor G110 G132 G160 G200 G250 G315 VSD 2

Atlas Copco Oil Injection Twin Screw Air Compressor G110 G132 G160 G200 G250 G315 VSD 3

Atlas Copco Oil Injection Twin Screw Air Compressor G110 G132 G160 G200 G250 G315 VSD 4

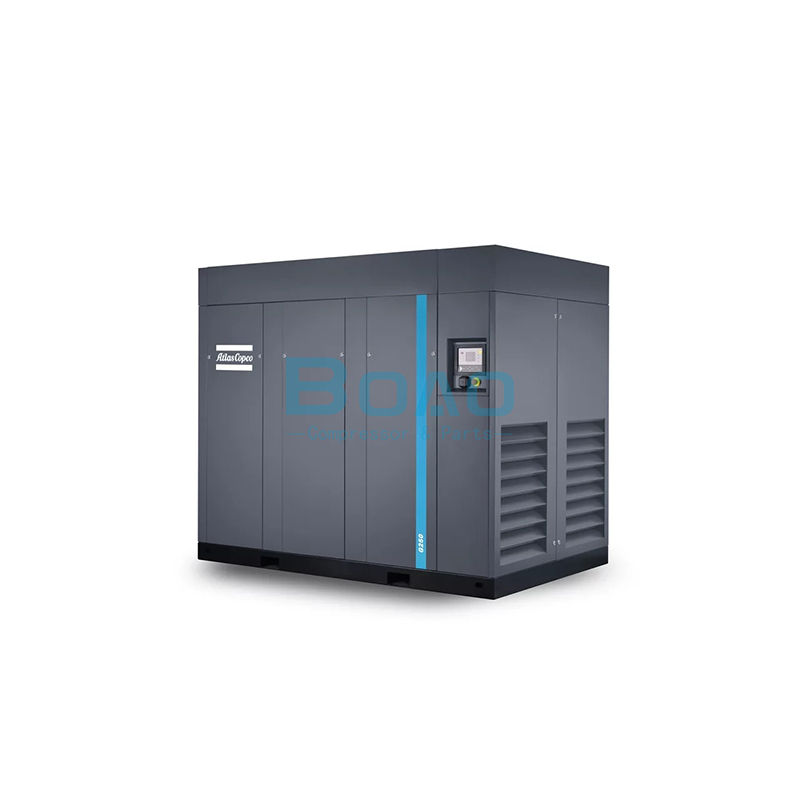

Atlas Copco Oil Injection Twin Screw Air Compressor G110 G132 G160 G200 G250 G315 VSD 5

Atlas Copco Oil Injection Twin Screw Air Compressor G110 G132 G160 G200 G250 G315 VSD

Easy to install, use and service
● No foundations needed: easy installation.
● Completely integrated, silenced package.
● Easy to transport and simple maintenance.

Why VSD technology?

In almost every production environment, air demand fluctuates depending on different factors (time of the day, week or even month). Extensive measurements and studies of compressed air demand profiles show that many compressors have substantial variations in air demand. Only 8% of all installations have a more stable air demand Tests prove that, even in this case, VSD compressors save energy.

consulta

download

G90-355 (VSD) 2023 Leaflet EN Wuxi 6996104301

Escribe una reseña

Our Advantage

Atlas Copco Oil Injection Twin Screw Air Compressor G110 G132 G160 G200 G250 G315 VSD 6

Smaller footprints

● Smaller footprint than all competitors.
● Save more installation space, increase capacity in limited installation space.

Atlas Copco Oil Injection Twin Screw Air Compressor G110 G132 G160 G200 G250 G315 VSD 7

State-of-the-art screw element

● Atlas Copco designed and patented asymmetric element profile with high quality bearings offering low wear and increased reliability.
● The unique profile design provides industry leading energy efficiency to lower your operating cost.

Atlas Copco Oil Injection Twin Screw Air Compressor G110 G132 G160 G200 G250 G315 VSD 8

High-efficiency cooler

● Element outlet temperature is optimized, avoid machine shut down due to element high temperature, increase reliability.
● Stainless cooler bundle avoid corrosion for water cooled machine.
● Optimized design reduces maintenance cost and increases reliability.

1 (19)

2 (46)

Superior air-oil separation

● Reduction of pressure drops and energy costs.
● Low oil consumption ensures minimal maintenance costs and long compressor lifetime.
● Optimized design of vessel to reduce the oil carry over, increase reliability.

High-efficiency motor

● High-efficiency (IE3) motor (Class F insulation) adapted to harshest conditions.
● Long-termstable operation even in harsh environments.

Optimal control with the Elektronikon® MK5 & SmartLink

● Clear icons and intuitive navigation provide you with fast access to all of the important settings and data.
● Monitoring of the equipment running conditions and maintenance status..
● SmartLink provides remote monitoring of compressor running status.

VSD: Driving down your energy costs

Over 70% of a compressor's lifecycle cost is taken up by the energy it consumes. Moreover, the generation of compressed air can account for more than 40% of a plant's total electricity bill. Our G VSD technology closely follows the air demand by automatically adjusting the motor speed. This results in on average 35% energy savings. The lifecycle cost of a compressor can be cut by an average of 22%. In addition, lowered system pressure with G VSD dramatically minimizes energy use across your production.

Atlas Copco was the first compressor manufacturer to introduce compressors with integrated Variable Speed Drive (VSD). With over 20 years of design and manufacturing experience our VSD technology has reached new heights of energy savings and reliability. VSD technology reduces energy consumption in systems that have varying air demand patterns. This reduction in energy consumption not only reduces your energy consumption but also your carbon footprint to help protect the environment for generations to come.

No current peaks

Flow chart

Fixed speed

A ● Intake air

B ● Air/oil mixture

C ● Oil

D ● Wet compressed air

E ● Condensate

Variable Speed Drive

A ● Intake air

B ● Air/oil mixture

C ● Oil

D ● Wet compressed air

E ● Condensate

Optimize sSystem

Scope of supply
Low noise cooling fan for air-cooled units	Air inlet filter and flexibles
Corrosion resistant coolers for water-cooled units	Air intake valve
IE3/GB18613-2012 Level 2 Class F electric motor	Full load/no load regulator
Starters (Star-Delta)	Long lifetime filtration and separation elements
Pre-mounted electrical cubicles	G/DIN connection for 50Hz unit, NPT/ANSI for 60Hz unit
Elektronikon® unit controller	Heavy-duty oil filters
Phase sequency relay	Air-oil separator
Separate start and stop signal for MV voltage	Compressed air aftercooler and oil cooler
Structural skid with no need for foundations	ASME/ML/AS1210/MOM approvals
Silenced canopy	SmartLink
Flexible vibration dampers

VSD: Driving down your energy costs

TYPE	Dimensions (Air-cooled)
	L		W		H
	มม.	inch	มม.	inch	มม.	inch
G 90-132 (VSD)	1900	75	1200	47	2000	79
G 160 Pro (VSD)	2800	110	1600	63	2000	79
G 200-250 Pro (VSD)	2800	110	1600	63	2300	91
G 250L-355 Pro (VSD)	3400	134	1750	69	2400	94

TYPE	L		W		H
TYPE	มม.	inch	มม.	inch	มม.	inch
G90-132(VSD)	1900	75	1200	47	2000	79
G 160-250 Pro(VSD)	2800	110	1600	63	2000	79
G 250L-355 Pro(VSD)	3400	134	1750	69	2000	79

Technical Specifications

TYPE	Maximum	working	pressure	Capacity FAD [1) Pack			Installed motor power		Air Outlet Size	Weight (shipping mass)
	Sta ndard			Capacity FAD [1) Pack			Installed motor power		Air Outlet Size	Standard
	bar(e)	psig		I/s	m2/min	cfm	kN	HP		กก.	lbs
50 เฮิรตซ์
G 90-8.5	8.5	123		270	16.2	571	90	125	G2-1/2''	1900	4189
G 90-10	10	145		254	15.3	539	90	125	G2-1/2'	1900	4189
G 90-14	14	203		217	13.0	460	90	125	G2-1/2'	1900	4189
G 110-7.5	7.5	109		335	20.1	710	110	150	G2-1/2'*	2000	4409
G 110-8.5	8.5	123		314	18.8	664	110	150	G2-1/2''	2000	4409
G 110-10	10	145		290	17.4	614	110	150	G2-1/2**	2000	4409
G 110-14	14	203		247	14.8	523	110	150	G2-1/2'*	2000	4409
G 132-75	7.5	109		404	24.2	855	132	175	G2-1/2'*	2100	4630
G 132-8.5	8.5	123		383	23.0	811	132	175	G2-1/2'*	2100	4630
G 132-10	10	145		344	20.7	729	132	175	G2-1/2'*	2100	4630
G 132-14	14	203		302	18.1	640	132	175	G2-1/2'*	2100	4630
G 160-7.5 Pro	7.5	109		516.7	31	1095	160	215	DN100	3973	8759
G 160-8.5 Pro	8.5	123		500	30.0	1059	160	215	DN100	3973	8759
G 160-10 Pro	10	145		450	27	953	160	215	DN100	3973	8759
G160-14 Pro	14	203		380	22.8	805	160	215	DN100	3973	8759
G 180-8.5 Pro	8.5	123		583.3	35.0	1236	180	241	DN100	4213	9288
G 180-10 Pro	10	145		511.7	30.7	1084	180	241	DN100	4213	9288
G 180-14 Pro	14	203		411.7	24.7	872	180	241	DN100	4213	9288
G200-8.5 Pro	8.5	123		670	40.2	1420	200	268	DN100	4298	9475
G 200-14 Pro	14	203		495	29.7	1049	200	268	DN100	4298	9475
G 250-8.5Pro	8.5	123		750	45.0	1589	250	335	DN100	4513	9949
G 250-14 Pro	14	203		568.3	34.1	1204	250	335	DN100	4513	9949
G 250L-8.5 Pro	8.5	123		844	50.6	1788	250	335	DN125	6760	14903
G 250L-10 Pro	10	145		785	47.1	1662	250	335	DN125	6760	14903
G 250L-14 Pro	14	203		650	39.0	1378	250	335	DN125	6760	14903
G 315-7.5 Pro	7.5	109		1049	62.9	2222	315	422	DN125	6790	14969
G315-8.5 Pro	8.5	123		1002	60.1	2123	315	422	DN125	6790	14969
G 315-10 Pro	10	145		916	55	1941	315	422	DN125	6790	14969
G 315-14 Pro	14	203		750	45	1589	315	422	DN125	6790	14969
*G 355-7.5 Pro	7.5	109		1093	65.6	2316	355	476	DN125	7130	15719
G 355-8.5 Pro	8.5	123		1093	65.6	2316	355	476	DN125	7130	15719
G 355-10 Pro	10	145		1000	60	2120	355	476	DN125	7130	15719
G 355-14 Pro	14	203		834	50.0	1766	355	476	DN125	7130	15719
