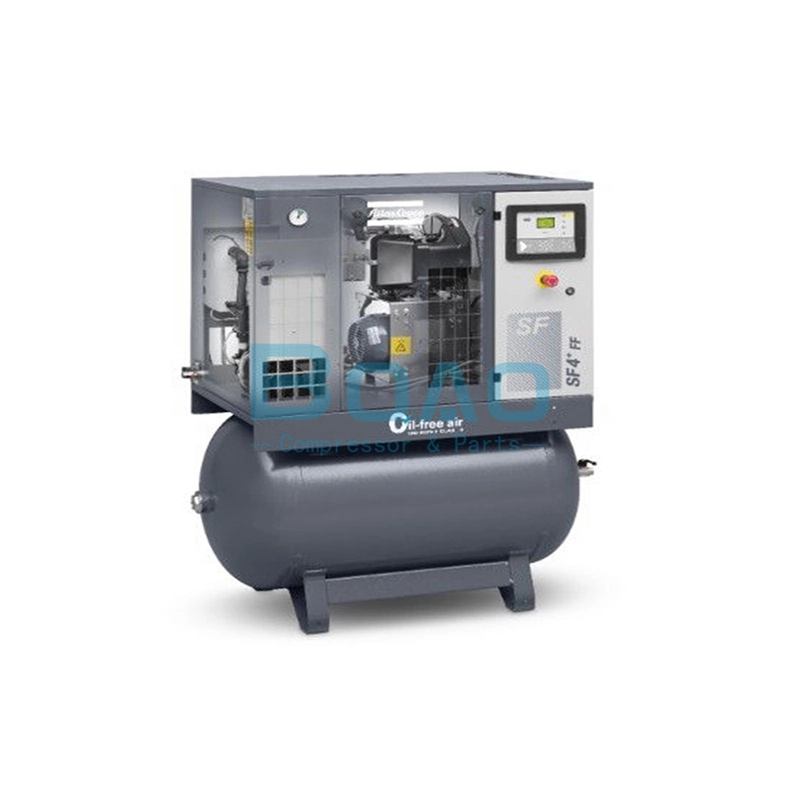

SF 1-6/SF+ 2-6: EFFICIENT, SILENT & COMPACT

The SF 1-6/SF+ 2-6 is a complete package uniting the element, drive motor, aftercooler and starter in a super silent acoustic enclosure to be installed directly into your work environment. It is also available as a Full Feature unit with integrated refrigerant air dryer. Three receiver mounting options are available: with an extended canopy that includes three integrated 10 liter galvanized air receivers or mounted on an internally coated 270 liter (72 gallon) or 500 liter (132 gallon) horizontal receiver.

ADVANCED SCROLL TECHNOLOGY

Air compression is achieved by the interaction of a fixed and orbiting scroll. Air at inlet pressure enters the compression chamber at the exterior side of the scroll element. Once air is drawn in, the orbiting scroll seals off the inlet port. As the scroll continues to orbit, the air is progressively compressed into an increasingly smaller 'pocket'. A continuous flow of compressed air leaves the scroll element through a discharge port in the center of the fixed scroll. This process is continuously repeated, resulting in the delivery of pulse-free compressed air.

Inquiry

download

Atlas Copco oil free compressor SF1-22_antwerp_lea

Write a Review

Feature

第3页-7

第3页-8

第3页-9

第3页-10

Air inlet filter

High efficiency paper cartridge air inlet filter, eliminating dust and particles down to 1 µm.

Automatic regulation

Automatic stop when the required working pressure is reached, avoiding unnecessary energy costs.

High efficiency scroll element

Air-cooled scroll compressor element offering proven durability and reliability in operation, in addition to solid efficiency.

IP55 Class F/IE3 motor

Totally enclosed air-cooled IP55 Class F motor, complying with IE3 & Nema Premium efficiency standards.

Refrigerant dryer

Compact & optimized integrated refrigerant dryer, ensuring the delivery of dry air, preventing rust and corrosion in your compressed air network.

Cooler & piping

● An oversized cooler improves the performance of the unit.
● The use of aluminum pipes and the vertically oversized check valve improve reliability over lifetime and assure the high quality of your compressed air.

Silent canopy

A sound insulated canopy makes extremely low noise levels as low as 53 dB(A) possible, allowing to install the unit closer to the point of use.

Integrated receiver

Plug and play solution, lower installation costs with 30l, 270l and 500l tank-mounted options.

Elektronikon® (SF+)

Monitoring features include warning indications, maintenance scheduling and online visualization of running conditions.

Innovative design

The new compact vertical setup enables easy access for maintenance, improves cooling allowing lower working temperatures and provides vibration damping.

SF-Skid/Twin

● Suitable for installation at the point of use or for integration into an existing air

network: designed with simplicity in mind.

● Self-contained units equipped with a single scroll element, drive motor, aftercooler and integrated starter,

all contained in a modern silenced acoustic canopy.

Advantages

Cooling fan
Suction chamber
Suction opening
Delivery opening
Fixed scroll
Orbiting scroll
Fail-safe temperature sensor for unit protection
Compression chamber

Class Zero: Theindustry StandardCLASS ZERO: THEINDUSTRY STANDARD

Oil-free air is used in all kinds of industries where air quality is paramount. These applications include food and beverage processing, pharmaceutical manufacturing, petrochemical processing, wastewater treatment, and many more. In these critical environments, contamination by even the smallest quantities of oil can result in costly production downtime and product spoilage.

First in oil-free air technology

Over the past 60 years Atlas Copco has pioneered the development of oil-free air technology, resulting in a range of air compressors that provide 100% pure, oil-free air.Through continuous research and development, Atlas Copco achieved a new milestone, setting the standard for air purity as the first manufacturer to be awarded ISO 8573-1 Class 0 certification.

Eliminating any risk

As industry leader committed to meeting the needs of the most demanding customers, Atlas Copco requested the renownedTÜV institute to type-test its range of oil-free compressors. Using the most rigorous testing methodologies available, all possible oil forms were measured across a range of temperatures and pressures. TheTÜV found no traces of oil at all in the output air stream. Thus Atlas Copco is the first compressor manufacturer to receive Class 0 certification, according to ISO 8573-1 Class 0 Ed. 3 2010 specifications.

CLASS	Concentration total oil (aerosol, liquid, vapor) mg/m3
0	As specified by the equipment user or supplier and more stringent than class 1
1	< 0.01
2	< 0.1
3	< 1
4	< 5

Current ISO 8573-1 (2010) classes (the five main classes and the associated maximum concentration in total oil content).

Dimensions

Snipaste_2025-04-22_10-13-48

Snipaste_2025-04-22_10-14-47

	*LWH*
	mm	inch
SF 1-6/2+-6+
Pack & floor-mounted	760 x 690 x 840	29.9 x 27.2 x 33.1
Full Feature & floor-mounted	1025 x 690 x 840	40.4 x 27.2 x 33.1
Pack & 270l receiver	1275 x 690 x 1450	50.2 x 27.2 x 57.1
Full Feature & 270l receiver	1275 x 690 x 1450	50.2 x 27.2 x 57.1
Pack & 500l receiver	2055 x 690 x 1450	80.9 x 27.2 x 57.1
SF 1-4 Skid / SF 6-8 Twin
SF 1-4 Skid FM	800 x 600 x 540	31.5 x 23.6 x 21.3
SF 1-4 SkidTM	1267 x 600 x 1154	49.9 x 23.6 x 45.4
SF 6-8 Twin	2043 x 600 x 1154	80.4 x 23.6 x 45.4

Options

	SF 1-6	SF 2+-6+
Integrated refrigerant dryer	•	•
CD adsorption dryer (only for Full Feature tank-mounted variants)	-	•
Phase Sequence Relay	•	•
Prefiltration kit	•	•
Integrated 30l air receiver + EWD	•	•
270l air receiver	•	•
500l air receiver	•	•
EWD on air receiver (only for tank-mounted variants)	•	•
Water Separator Drain (WSD) (only for Pack floor-mounted variants)	-	•
Upgrade to Mk5 Graphic Controller	-	•
ES4i & ES6i (only with Mk5 Graphic Controller upgrade)	-	•
Wooden package	•	•
Test certificate	•	•

	SF Skid/Twin
270l air receiver (SF Skid)	•
CD adsorption dryer (only for FFTM variants)	•

Technical Specifications

TYPE	Max. working	pressure	Capacity FAD*			Installed motor power		Noise level**	Wei g ht
TYPE	bar(e)	psig	l/s	m3/min	cfm	kW	hp	dB(A)	kg	lbs
SF 1-6/2+-6+ (50/60 Hz)
SF1	8	116	2.9	0.17	6.1	1.5	2	53	120	265
SF1	10	145	1.9	0.11	4.0	1.5	2	53	120	265
SF 2/SF 2*	8	116	4.2	0.25	8.9	2.2	3	55	125	276
SF 2/SF 2*	10	145	3.4	0.20	7.2	2.2	3	55	125	276
SF4/SF4+	8	116	6.7	0.40	14.2	3.7	5	57	133	293
SF4/SF4+	10	145	5.9	0.35	12.5	3.7	5	57	133	293
SF6/SF6*	8	116	9.8	0.59	20.8	5.5	75	59	157	346
SF6/SF6*	10	145	7.6	0.46	16.1	5.5	Z5	59	157	346

SF SKID/TWIN
Skid versions
SF1	8	116	2.9	0.17	6.1	1.5	2	65	105	232
SF1	10	145	1.9	0.11	4.0	1.5	2	65	105	232
SF2	8	116	4.2	0.25	8.9	2.2	3	67	110	243
SF2	10	145	3.4	0.20	7.2	2.2	3	67	110	243
SF 4	8	116	6.6	0.40	14.0	3.7	5	68	120	265
SF 4	10	145	5.6	0.34	11.9	3.7	5	68	120	265
Twin versions - duplex tank mounted
SF 6T	8	116	10.6	0.64	22.5	5.9	8	72	365	805
SF 6T	10	145	9.0	0.54	19.1	5.9	8	72	365	805
SF 8T	8	116	13.2	0.79	279	7.4	10	73	375	827
SF 8T	10	145	11.2	0.67	23.7	7.4	10	73	375	827

* Free Air Delivery measured according ISO 1217 ed. 4 2009, Annex C.

** Mean sound pressure level measured according to ISO 2151, with an uncertainty of 3 dB(A). Weights of the pack & floor-mounted units are shown in the chart.
