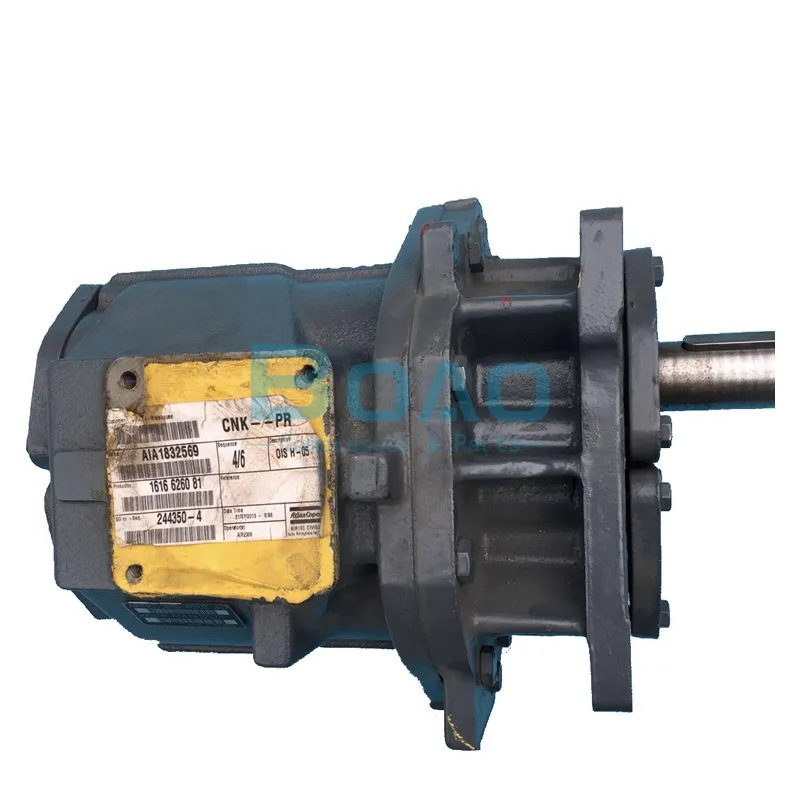

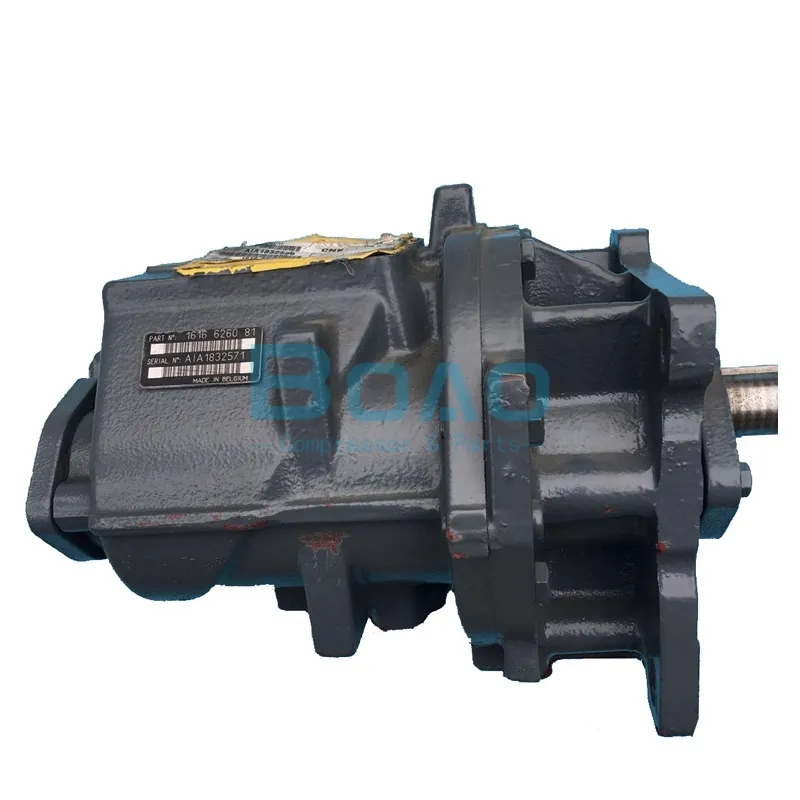

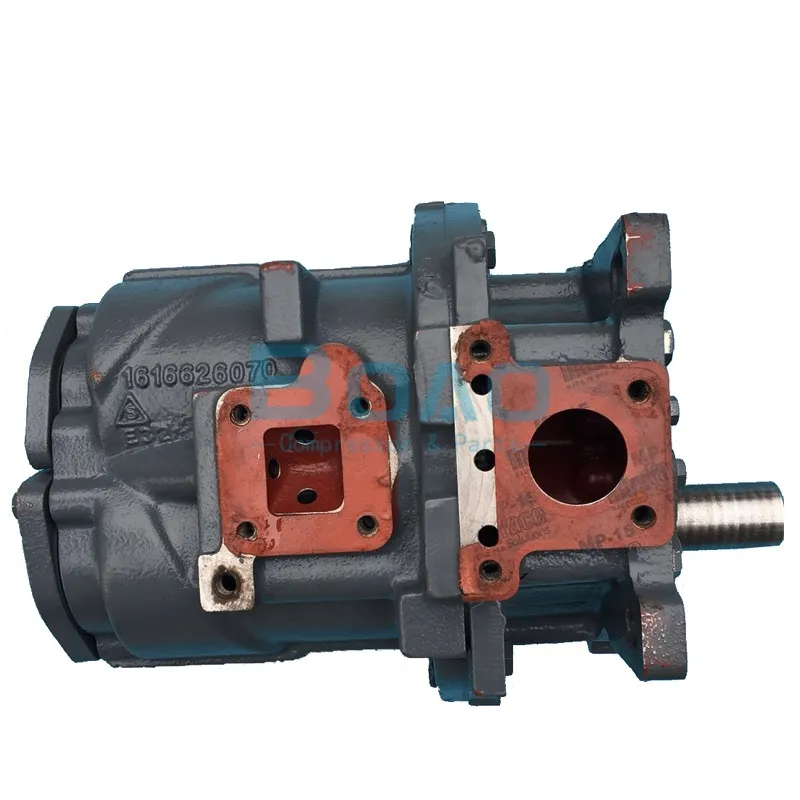

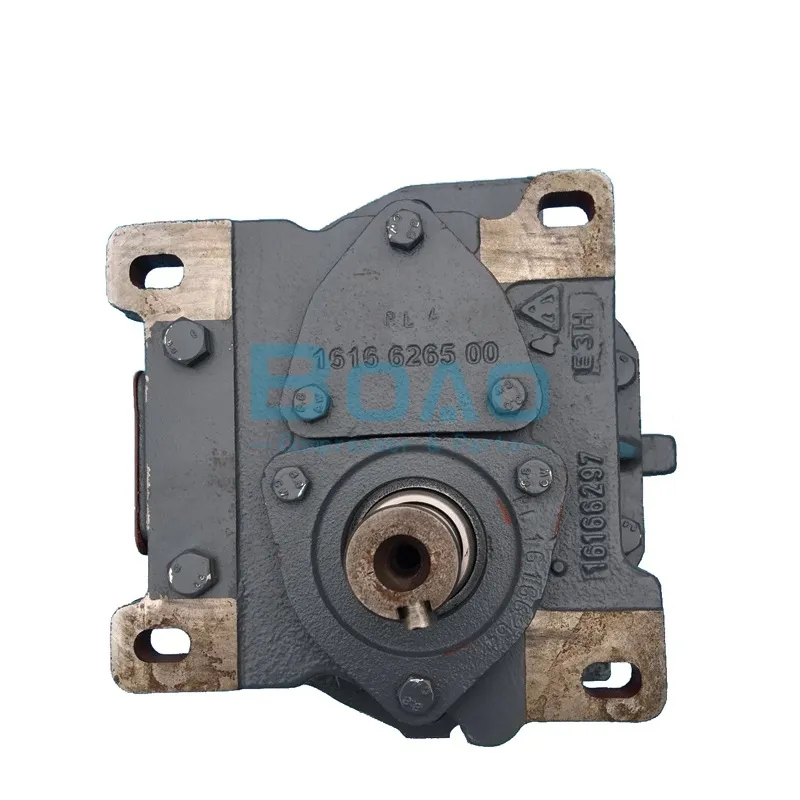

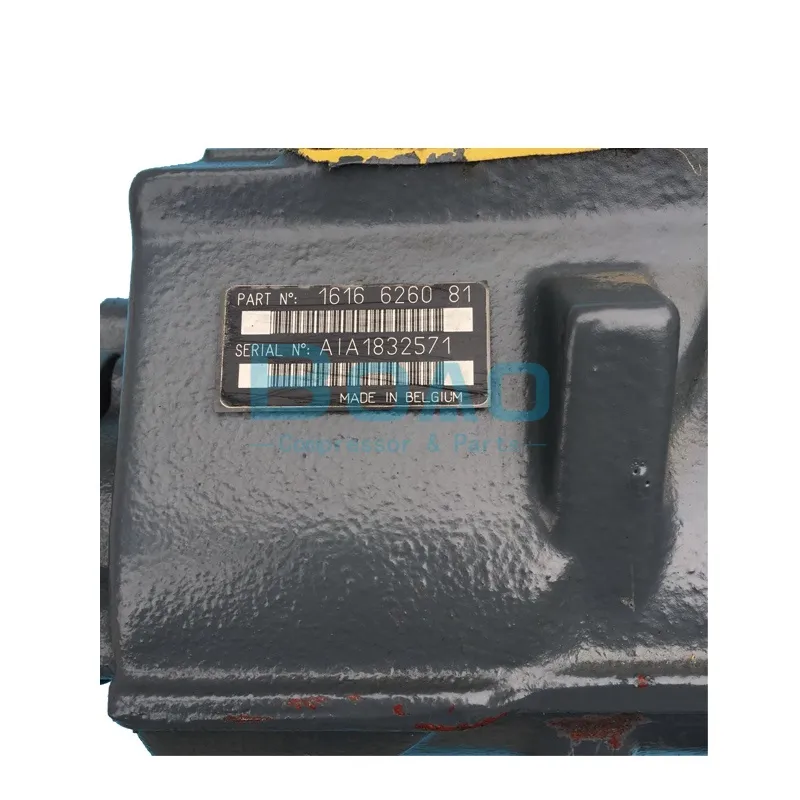

Atlas Copco 1616626081 O.I.S. H-05 Air End for Portable Screw Compressors

What is the O.I.S. H-05 Air End

The O.I.S. H-05 air end is the compression heart of Atlas Copco portable diesel-driven screw compressors. Inside the cast housing, a precision-matched pair of helical rotors turns in synchronization through timing gears. Atmospheric air enters the inlet port and becomes trapped between the rotor lobes and the housing bore. As the rotors rotate, the trapped volume decreases continuously along the rotor profile. Pressure builds until the compressed air-oil mixture exits through the discharge port at the working pressure of the compressor package.

Oil injection plays a critical role in the compression process within this air end. Pressurized oil enters the compression chamber near the inlet side and disperses throughout the trapped air volume. The oil film seals the running clearance between the rotor lobes. This sealing action prevents high-pressure air from leaking back to the inlet side, maintaining high volumetric efficiency. The oil also absorbs compression heat, keeping discharge temperatures within the design limits of the rotor coating and bearing materials. A third function of the oil is lubricating the support bearings at both ends of the rotor shafts.

The O.I.S. H-05 frame size represents a specific rotor diameter and length class in the Atlas Copco air end family. Atlas Copco engineers select the rotor profile, lobe count, and wrap angle to match the pressure and flow requirements of the targeted compressor models. The H-05 designation appears on the air end housing and in the compressor parts catalog for correct identification during service planning.

Part Number Update: 1616626081 and 1616626090

Atlas Copco has superseded part number 1616626081 with 1616626090. The 1616626090 is the current service stage air end for the same compressor models and applications. The two part numbers identify the same O.I.S. H-05 compressor element with no engineering change to the rotor profile, bearing arrangement, or mounting interface. Atlas Copco parts catalogs now reference 1616626090 as the active part number for new orders.

Maintenance teams managing older compressor fleets may encounter 1616626081 in original equipment documentation and earlier service records. Both numbers reference the identical H-05 frame air end. When ordering replacement air ends, the current 1616626090 part number ensures access to the latest production batch with full factory traceability and warranty coverage. Parts databases and authorized distributor systems recognize both numbers as cross-references for the same O.I.S. H-05 service stage element.

The 1616626081 O.I.S. H-05 air end is cataloged as the service stage compressor element for Atlas Copco portable diesel-driven compressors in the XAS 37 through XAS 76 range. These models operate in demanding outdoor environments including construction sites, road building projects, mining operations, and field service locations. Additional compatible models from distributor cross-reference data include XAS 67, XAS 97, CPS 90, and CPS 110 compressor packages. Always verify compatibility by checking the compressor serial number through an authorized Atlas Copco parts channel before finalizing an air end replacement order.

Portable diesel compressors subject air ends to operating conditions distinct from stationary industrial units. Vibration from transport and uneven ground, airborne dust ingestion, and temperature extremes all contribute to the duty cycle. The O.I.S. H-05 air end is designed for these conditions with bearing arrangements and rotor coatings selected for mobile compressor service.

Recognizing Air End Wear in Portable Compressors

Portable diesel compressors expose the 1616626081 air end to operating conditions that influence its service life. Field service environments introduce airborne dust and moisture into the intake air. Extended idle periods between job assignments allow condensation inside the oil system. Transport vibration adds mechanical stress cycles beyond normal operation. These factors contribute to air end wear patterns that differ from stationary industrial compressor service.

Several indicators signal that an O.I.S. H-05 air end approaches the end of its service life:

• Reduced air delivery at rated pressure: The compressor fails to maintain normal airflow output. Internal clearances between the rotor lobes and the housing bore have increased over thousands of operating hours. A flow measurement at the compressor service valve confirms the capacity loss. The decline typically progresses gradually rather than appearing suddenly.
• Extended loading time: The compressor runs longer to meet the same air demand from pneumatic tools or equipment. Extended loading increases diesel fuel consumption on job sites. The effect is most noticeable during high-demand operations like sandblasting or multiple-hammer breaker work.
• Elevated discharge temperature: The air-oil mixture temperature at the compressor discharge port runs higher than the historical baseline under similar ambient and load conditions. Increased internal recirculation of hot compressed air through worn rotor clearances raises the discharge temperature. The oil cooler may operate near its thermal limit during continuous service.
• Oil consumption increase: The compressed air carries more oil downstream. Worn clearances allow oil to bypass the normal compression path. Oil carryover rises above the routine replenishment rate, increasing operating costs and separator element loading.

Service Stage Replacement Planning

Atlas Copco does not publish a fixed replacement interval for the 1616626081 air end. Service life depends on operating conditions, maintenance discipline, and the compressor's duty cycle. Compressors operating in clean environments with regular oil changes and proper air filter service typically achieve longer air end life. Machines exposed to construction dust, high ambient temperatures, and irregular maintenance intervals may require earlier air end replacement.

Oil analysis provides the earliest quantitative indication of air end condition. Rising concentrations of bearing wear metals in the oil sample signal deteriorating bearing surfaces. The presence of coating materials indicates rotor surface wear. Regular oil sampling establishes a baseline for each compressor. Departure from the baseline triggers further investigation with vibration analysis and compressor capacity testing. Maintenance planners use the combined data from oil analysis, vibration trending, and capacity measurement to schedule air end replacement during planned downtime rather than during a reactive breakdown event.

Replacing a portable compressor air end in the field requires lifting equipment, proper rigging, and alignment tools. The service stage O.I.S. H-05 air end mounts to the compressor frame using bolted connections. The drive coupling between the engine and the air end input shaft must be aligned to Atlas Copco specifications after installation. Misalignment transmits damaging radial loads into the air end bearings and reduces the service life of the replacement unit.
